Batch Withdrawal

Privacy Pools allow users to generate new private claims on funds, as notes, in any amount. Users can then withdraw funds from these notes, either partially or totally. This is the foundation of the system's privacy.

However, the initial implementation has two key constraints. First, you cannot top-up more funds to a note once it is created. Second, there is no way to guarantee that a relayer will process multiple withdrawals atomically as a single logical transfer.

These constraints create a poor user experience because a user cannot make a payment for an amount greater than their single biggest note. This also leads to users accumulating many small "dust" notes that their wallet cannot automatically consolidate, forcing them into what is known in UTXO systems as "manual coin control", so we have to handle this complexity in some way.

This document explains the batch withdrawal mechanism, a design that solves this problem.

The goals​

This mechanism is designed to achieve three specific goals.

First, it should let a user withdraw from any number of their notes in one transaction. This is necessary for both efficiency and privacy. Processing multiple withdrawals separately is slow, costs more in gas fees and creates a series of onchain transactions that could potentially be linked degrading privacy.

Second, it has to guarantee atomicity. This means either the full set of withdrawals is processed successfully or the entire operation fails.

Third, the system should remain trust minimized. While a user relies on a relayer for the convenience of submitting their transaction, the protocol itself must not require the user to trust that relayer. This design removes the need for trust by making it cryptographically impossible for the relayer to act maliciously with a user's batch.

The data structure​

The core of the security model is a shared data structure called BatchRelayData. Its hash is embedded as a public input in every single zk-SNARK proof within a batch. This acts as a set of cryptographic handcuffs, binding all proofs to one single set of instructions.

struct BatchRelayData {
    address recipient;
    address feeRecipient;
    uint256 relayFeeBPS;
    uint8   batchSize;
    uint256 totalValue;
}

This data is encoded and its hash is used in each proof. Therefore every proof is tied to the same recipient, fee, and most importantly, the batchSize. An attacker cannot mix and match proofs from different withdrawal attempts or alter the intended parameters.

An example​

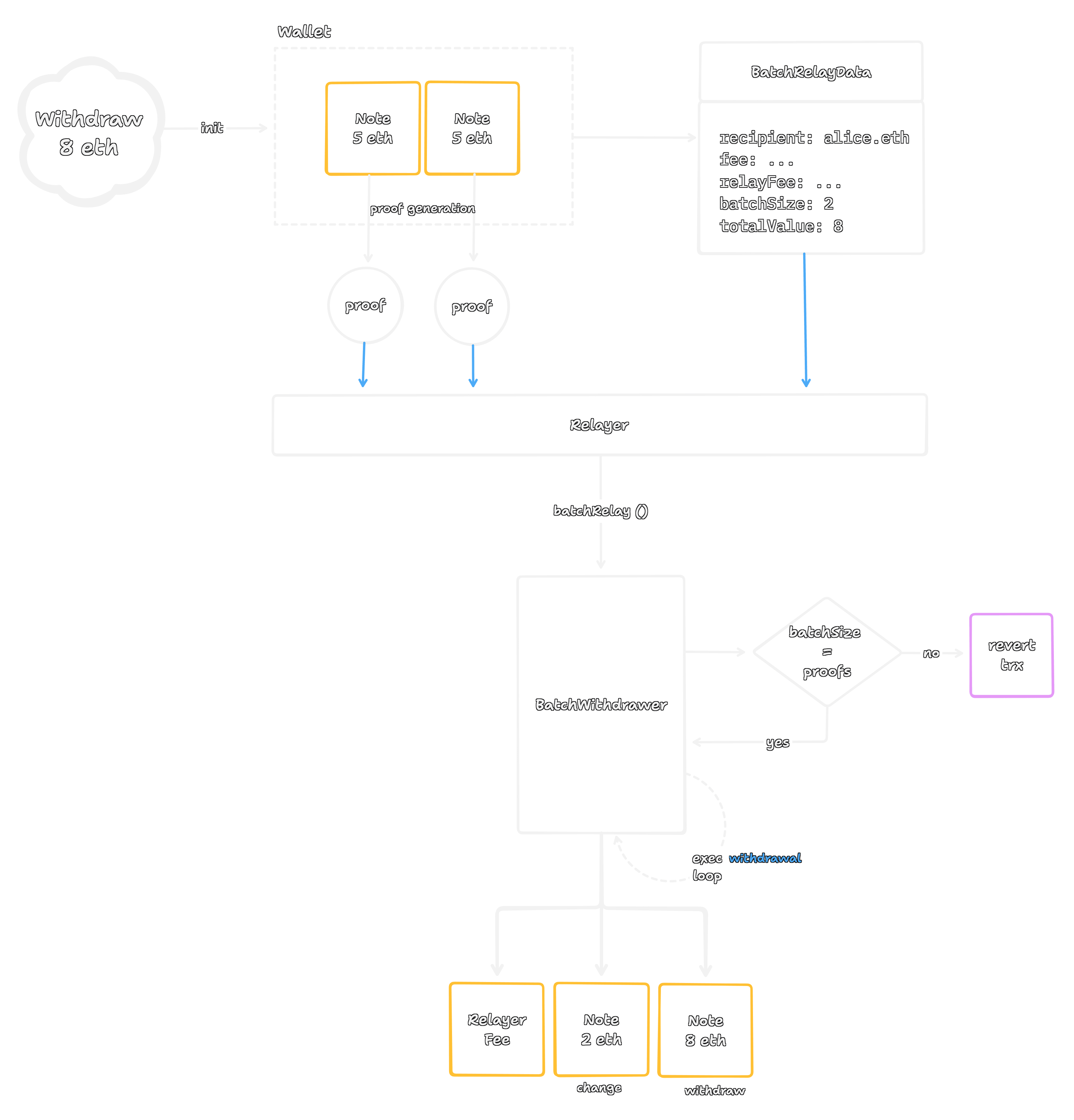

Batch withdrawal

The user's wallet generate two proofs from two 5 ETH notes to withdraw 8 ETH. In short, the flow works like this:

  1. The user's Wallet bundles proofs for each note being spent with a single set of instructions (BatchRelayData).
  2. A Relayer submits this package to the BatchWithdrawer contract in one transaction.
  3. The Contract first verifies that the number of proofs matches the instructions. If not, the transaction fails. If it matches, the contract processes all withdrawals and distributes the funds. This all or nothing logic guarantees atomicity.

Why a partial withdrawal are not feasible​

This design ensures that a malicious relayer cannot execute an incomplete batch. A relayer might be tempted to do this because a relayer's fee is often a percentage of the withdrawn amount, they could be incentivized to process only the largest notes in a batch to maximize their fee while saving on gas costs by skipping smaller ones.

The design protects against this with two arguments.

The first is to call the pool directly, attempting to bypass the BatchWithdrawer. This fails because each zk-SNARK proof specifies that the BatchWithdrawer contract must be the msg.sender to the pool. A call from any other address is rejected.

The second is to call the BatchWithdrawer with a subset of proofs. This fails because of the batchSize check. The contract executes a check require(withdrawals.length == data.batchSize). If the number of proofs submitted does not match the number expected by all the other proofs, the transaction reverts.

The only path to a successful withdrawal is to submit the complete, unaltered batch.

Conclusion​

The BatchWithdrawer contract is a simple yet powerful mechanism that solves fund fragmentation. It provides a trust minimized and atomic way for users to combine multiple notes into a single transaction.

This now provides the capability to spend multiple notes atomically. The next logical question is, given a user's full set of Notes, which ones should the wallet choose for a given withdraw to maximize the user's privacy? This is the job of the note selection algorithm.
